제품 사양

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Printing Shops

Showroom Location: United States, Italy, India, Mexico, Russia, Thailand, Algeria, South Africa

Video outgoing-inspection: Not Available

Machinery Test Report: Not Available

Marketing Type: Hot Product 2019

Warranty of core components: 1 Year

Core Components: PLC, Bearing, Gearbox, Motor, Gear, Pump

Condition: New

Type: FOLDER GLURES

Automatic Grade: Automatic

Voltage: 380V

Dimension(L*W*H): 15.51*1.66*1.4 m

Weight: 7.8 Ton

Warranty: 1 Year

Key Selling Points: Automatic

After-sales Service Provided: Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Speed: max. 400 m/min

Inching speed: 20 m/min

Thickness of folded box: max. 20 mm

Blank width: 1100 mm

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: United States, Italy, Philippines, India, Mexico, Russia, Spain, Thailand, Australia, South Korea, Algeria, Ukraine

인증: CE

기본 정보

인증: CE

결제 및 배송 조건

Packaging Details: Sea packing, shockproof, suitable for long-distance road and vessel transportation and various types of weather conditions.

Supply Ability: 60 Set/Sets per Month

제품 설명

Product Description

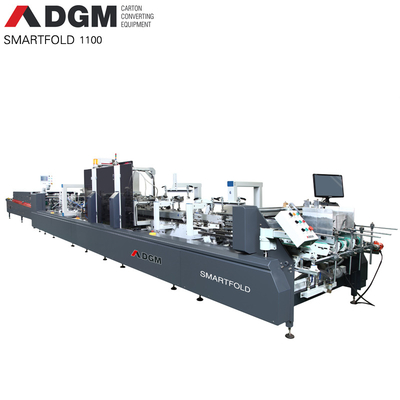

High speed automatic folder gluer

SMARTFOLD 1100 – PC

suitable for straight-line, crash-lock bottom & double wall boxes

SMARTFOLD 1100 – SL
suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes
SMARTFOLD 1100 It is specially indicated for the most demanding packaging companies, commercial printers and finishers. Can run
from small to large sized boxes, covering a wide range of industries. It is flexible to operate and it comes with a state of the
art technology and electronics. The standard version includes the accessories for straight line and crash lock bottom boxes. It is
flexible and easy to operate.

1. Feeder section

* Independently motorized friction feeder with variable speed.
* Adjustable electronic pile vibrator.
* Side feed gates fully adjustable to the width of the blank.
* 8 feeder belts.
* Two adjustable front feed knives.

2. Side register section

* Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank
alignment.

3. Pre-folding section

* Left hand glue flap pre-folder up to 180º.
* Third crease line pre-folder up to 135º.
* 1st and 3rd crease openers.

4. Crash lock bottom section

* Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately.
* Set of accessories for B-type lock bottom.

5. Lower gluing unit

* One lower (left side) gluing tank.
* Easy to remove and clean.
* Electronic upper gluing system by guns. (Optional)

6. Folding & Closing section

* Smooth and accurate folding of 2nd and 4th creases.
* Two upper and two lower carriers with 25 mm lower and 30 mm outer belts.
* Width-wise adjustable heavy duty compression rollers (optional).

7. Trombone section

* Upper and lower drive mechanism for lengthwise adjustment.
* Equipped with automatic belt tension-adjusting system.
* Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well
aligned flow.

8. Press section

* Independent and motorized press section.
* Manual and Automatic mode (follow up).
* Upper section moves back and forward, allowing for different box length.
* 5 meters total length with 3.5 meters effective pressure length.
* Pneumatic pressure adjustment.

9. Servo-motor of back folding device

* Two driven shafts allow a precise fold of the rear flaps. Easy to setup through the main touchscreen.

Material

Specification

BOX

SCHEME

China Factory Automatic Carton Box Folder And Corrugated Gluer SMARTFOLD 1100 Machine

1. Feeder section

2. Side register section

3. Pre-folding section

4. Crash lock bottom section

5. Lower gluing unit

6. Folding & Closing section

7. Trombone section

8. Press section
