High Speed ​​Food Stainless Steel Carton Case Erector Machine

1 Set
MOQ

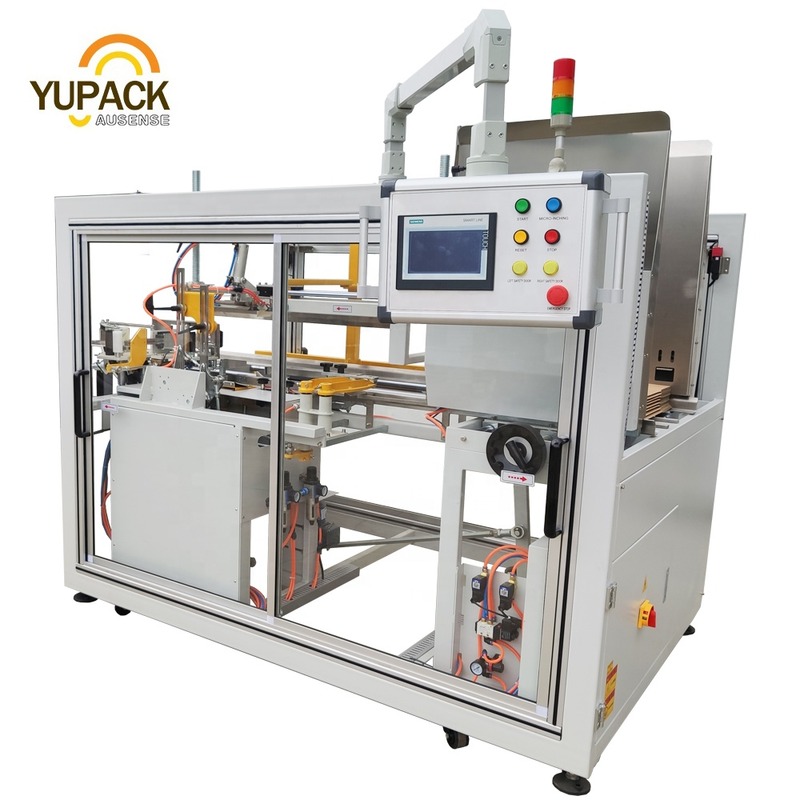

High Speed ​​Food Stainless Steel Carton Case Erector Machine
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Type: Packaging Line
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location: United States
Condition: New
Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco
Packaging Type: Cartons, case, Box
Packaging Material: Wood
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380V 50Hz 3P
Dimension(L*W*H): L2372*W1210*H1820mm
Weight: 1000 KG
Warranty: 1 Year
Key Selling Points: Long Service Life
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: PLC
Tape: W48-72mm
Speed: 20-25 boxes/min
After Warranty Service: Video technical support, Online support
Local Service Location: United States
After-sales Service Provided: Online support, Video technical support
인증: CE
기본 정보
인증: CE
결제 및 배송 조건
Packaging Details: Export standard wooden case
제품 설명
Products Description
Product Paramenters
Model
YPK-4025
Voltage
220/380V 50/60Hz 3P
Power
2KW
Speed
20-25 boxes/min
Table Height
950mm
Air
5kg/cm2
Applicable Carton
L240-510mm;W190-400mm;H120-400mm
Tape
W48-72mm
Machine size
L2372mm*W1210mm*H1820mm
Weight
1000kg
Product Advantages
Main characteristics:
1.Using the man-machine interface control, real-time action status display and alarm function. 2.The unpacking speed can be adjusted arbitrarily (controlled by frequency converter). 3.Door opening safety protection function, include door opening mechanical stop and alarm, light flashing. 4.Automatic warning function remained there is no carton in the material tank, or no tape alarm function. 5.The cartons are stored horizontally, and empty cartons can be replenished at any time without stopping the machine, which saves time and improves efficiency. 6.This machine can complete the carton suction, unpacking, forming, folding, sealing and other packaging processes at one time.
Custom Product Display
Our workshop
Frequently Bought Together
Company Profile
Qingdao Ausense has been established in 2008, which focus on the planning, R&D and manufacturing of automatic packaging production line. Such as automatic carton packing line, shrinking wrapping line, fully automatic pallet strapping line, conveyor system and so on......
Ausense main brand is YUPACK, All products have passed the CE certification of the European Union; Our productions have beening exported to Europe, North America, the Middle East, Southeast Asia and more than 30 other Countries.
Since 2017, Qingdao Ausense had successfully introduced robots into our end of packaging production line which can effectively integrate into the application of enterprise MES manufacturing execution system, and provide a complete set of automation industry 3.0 to 4.0 transformation and upgrading services.
